The 132kW VFD580 variable frequency drive features an integrated DC reactor.
  • The 132kW VFD580 variable frequency drive features an integrated DC reactor.
  • The 132kW VFD580 variable frequency drive features an integrated DC reactor.
  • The 132kW VFD580 variable frequency drive features an integrated DC reactor.
Lugar de origem CHINA
Marca VEIKONG
Certificação CE IEC
Número do modelo VFD580
Quantidade de ordem mínima 2 pcs
Detalhes da embalagem caixa de papel sob 45kw, partindo do argumento 45kw de madeira para embalar
Tempo de entrega 7-8 dias de trabalho baseados na quantidade
Termos de pagamento MoneyGram, Western Union, T/T, D/P, D/A, L/C.
Habilidade da fonte 15490 pelo mês
Detalhes do produto
Poder 132kW Freqüência 50/60Hz
Cor azul claro e branco Tensão 380V/220V
Garantia 24 meses OEM OEM
Material Plástico e mental Destaque Reator CC interno VFD580, acionamento de frequência variável de 132kW, unidade de frequência variáve
Descrição de produto

1. Main features of VEIKONG VFD580

1. Support AC asynchronous and permanent magnet synchronous motor, servo motor, supports speed, torque and servo    position control mode.

2. 15kw and above equipped with built-in DC reactor as standard.

3. 37kw and below equipped with built-in braking unit as standard, 45kw-90kw is optional, starting from 110kw is external.

4. 90kw and below equipped with brake circuit short-circuit protection function.

5. Support MODBUS-RTU, CAN-Open, ProfiNet. Stronger mode VFD586 supports EtherCat.

6. Support 6 kinds of PG card(Incremental PG card, rotary, sin-cos pg card, ABZ close loop pg card, UVW pg card and Tamagawa absolute pg card.

7. Standard motor temperature sensor interface, support PT100, PT1000, KTY84.

8. Support Spanish LCD keypad, it is easy to monitor and operator.

9. Support optional STO function.

2. Series description

Model Rated output current Applicable motor Size Brake unit
Three phase :400V
VFD580/586-2R2-T4B 5.6A 2.2KW


SIZE A






Standard

built-in
VFD580/586-4R0-T4B 9.4A 4.0KW
VFD580/586-5R5-T4B 13.0A 5.5KW
VFD580/586-7R5-T4B 17.0A 7.5KW SIZE B
VFD580/586-011-T4B 25.0A 11KW
VFD580/586-015-T4B 32.0A 15KW


SIZE C
VFD580/586-018-T4B 37.0A 18.5KW
VFD580/586-022-T4B 45.0A 22KW
VFD580/586-030-T4B 60.0A 30KW SIZE D
VFD580/586-037-T4B 75.0A 37KW
VFD580/586-045-T4 (B) 90.0A 45KW SIZE E

Optional

built-in
VFD580/586-055-T4 (B) 110.0A 55KW
VFD580/586-075-T4 (B) 152.0A 75KW SIZE F

Optional

built-in
VFD580/586-090-T4 (B) 176.0A 90KW
VFD580/586-110-T4 210.0A 110KW


SIZE G





Circumscribed
VFD580/586-132-T4 253.0A 132KW
VFD580/586-160-T4 304.0A 160KW SIZE H
VFD580/586-200-T4 380.0A 200KW


SIZE I
VFD580/586-220-T4 426.0A 220KW
VFD580/586-250-T4 465.0A 250KW
VFD580/586-280-T4 520.0A 280KW SIZE J
VFD580/586-315-T4 585.0A 315KW


Model Rated output current Applicable motor Size Brake unit
Single phase/Three phase :220V
VFD580/586-0R7-S2B (T2B) 5.6A 0.75KW


SIZE A






Standard

built-in
VFD580/586-1R5-S2B (T2B) 8.0A 1.5KW
VFD580/586-2R2-S2B (T2B) 10.6A 2.2KW
VFD580/586-4R0-S2B (T2B) 17.0A 4.0KW SIZE B
VFD580/586-5R5-S2B (T2B) 25.0A 5.5KW
VFD580/586-7R5-S2B (T2B) 32.0A 7.5KW SIZE C
VFD580/586-011-S2B (T2B) 45.0A 11KW
VFD580/586-015-S2B (T2B) 60.0A 15KW SIZE D
VFD580/586-018-S2B (T2B) 75.0A 18.5KW


3. The factory environment and manufacturing and testing process here

Veikong pay much attention to the manufacturing process and environment, each process of testing and producing have been monitored by professional workers here. Veikong, your trusted supplier!



The 132kW VFD580 variable frequency drive features an integrated DC reactor. 0

The 132kW VFD580 variable frequency drive features an integrated DC reactor. 1

3. The factory environment and manufacturing and testing process here

Veikong pay much attention to the manufacturing process and environment, each process of testing and producing have been monitored by professional workers here. Veikong, your trusted supplier!



The 132kW VFD580 variable frequency drive features an integrated DC reactor. 0

The 132kW VFD580 variable frequency drive features an integrated DC reactor. 1

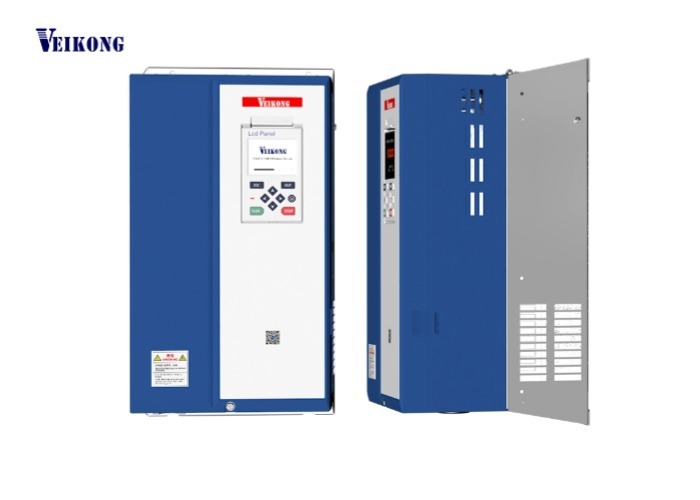

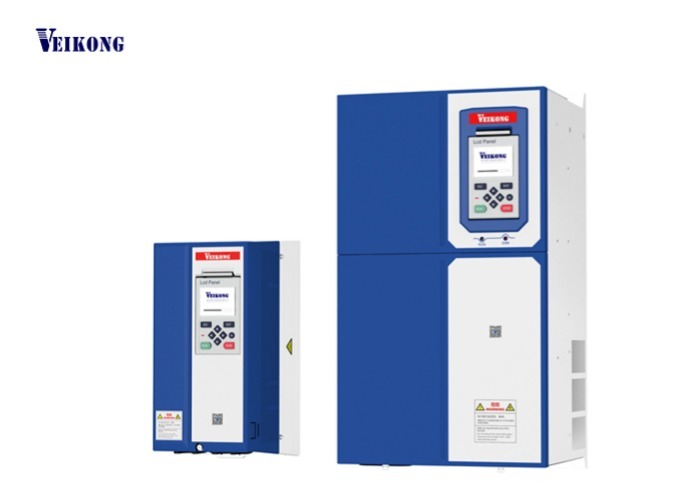

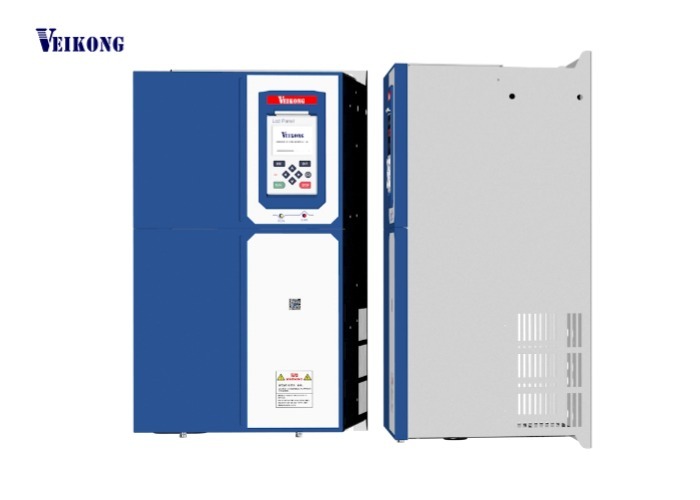

4. VFD580 product images

The 132kW VFD580 variable frequency drive features an integrated DC reactor. 4The 132kW VFD580 variable frequency drive features an integrated DC reactor. 5The 132kW VFD580 variable frequency drive features an integrated DC reactor. 6

The 132kW VFD580 variable frequency drive features an integrated DC reactor. 7
