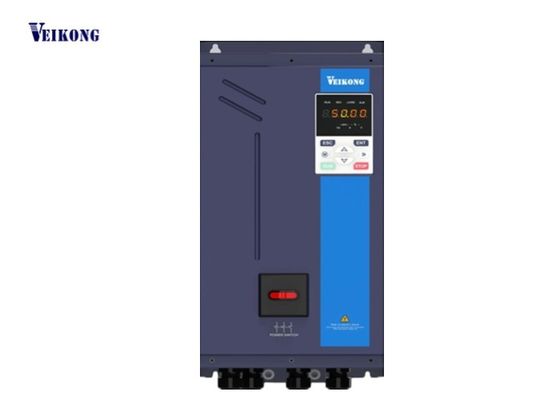

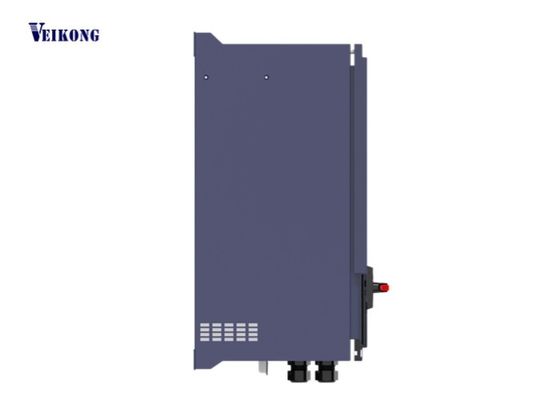

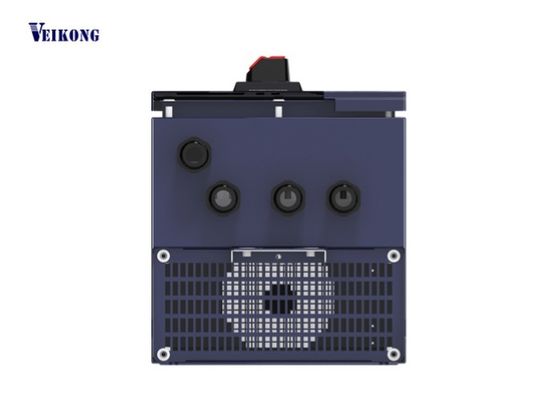

All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems
  • All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems
  • All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems
  • All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems
Lugar de origem China
Marca VEIKONG
Certificação CE, Rosh
Número do modelo VFD510-PV
Quantidade de ordem mínima 1
Detalhes da embalagem Caixa de papel e caixa de madeira
Tempo de entrega 3 dias, depende da quantidade de pedido
Termos de pagamento Western Union, T/T, L/C.
Habilidade da fonte 15000pcs por mês
Detalhes do produto
Nome do produto All-in-One MPPT Solar Bomba Drive | Proteção IP65 para sistemas de bomba de 4KW - 11kW Frequência de saída 50Hz 60Hz
Aplicação Cultivando a irrigação e o sistema de bombeamento solar Corrente de saída Dependem do modelo
Tipo de saída 3 fase, TRIPLICAR-SE Peso Dependem do modelo
Nível de proteção IP55 Marca Veikong
OEM Apoiar Destaque Inversores de bomba de água solar IP55, inversores de bomba de água solar de 60Hz, inversor solar de
Descrição de produto

All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems

All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems 0

Technical Specification

220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

Normal working DC voltage

260V-400V

400V-650V

Recommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP55

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS

Product Application

All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems 1


All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems 2


Q&A


1. Does the product need to set a lot of parameters?

No, it doesn't. The inverter has a self-adaptive and self-learning function. It is automatic start and stop, you can press Run key to start, or you just wait for 600S then it will automatically start

2. Could it replace my previous PV pumping inverter?
Yes, of course. Selecting inverter model according to the rated voltage, current and power of the water pump. A bit more is better. Then take off the old one and put ours on, the system will work.

3. How to design solar PV water pump system?
Key point: the rated VOC and vmp and power of the PV Array need to match the input range of the inverter. If need, we will provide technical support online.


4. How to make the water pump system work without sunshine?

Usually, solar PV water pump system can meet the needs of pumping water.
If there is no sunshine, the system will not work. But out inverter could also support AC input. So, connect the power grid or diesel power generation to the inverter, the pumping system will work. If necessary, keep switch and interface locations during the system design time.

5. How to use terminal control with external switch to run and stop solar pump inverter ?
(Terminal control): As the default control mode is keypad control, First set P00.06=1 and use a wire or switch to connect com and DI1, When the switch is closed, the drive run, when the switch is open, the drive stop

6. How to use a float in the water tank to stop the pump if the tank is full?
Use float switch to short DI 1 and com.

7. Use level probe in the well for protection against dry running
Set P24.12=1 and set P24.13 and P24.14 and P23.21

8. How to set minimum frequency 25hz and maximum 50HZ?
Set P47.05=25HZ and 47.06 to some time and 47.07 to some time

9. If pump is 60HZ frequency, how to set max frequency?
Notice: If your motor rated frequency is 60HZ you should set P01.06=P01.08=P11.05=60HZ.

10. How to achieve Automatic start after stop?
Our solar pump inverter is automatic start and stop with our special software
